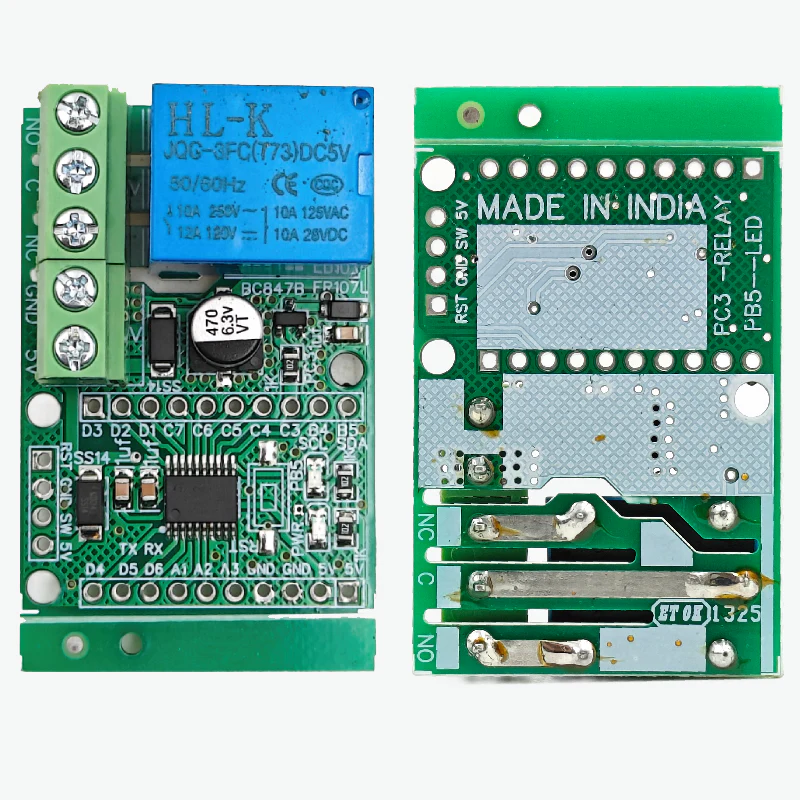

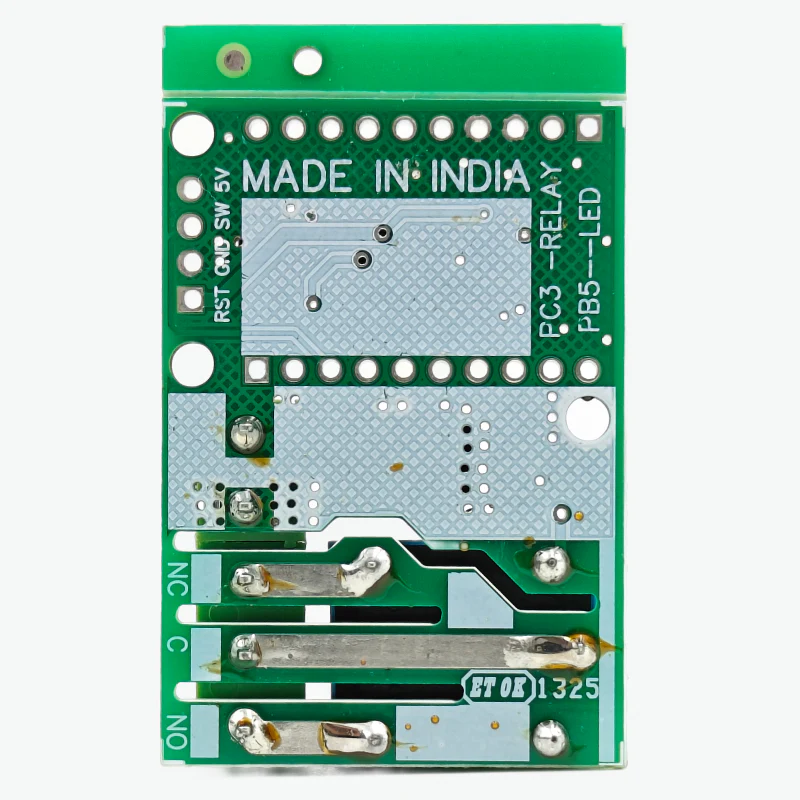

STM8S003F3P6TR with Relay Breakout Board - 5V

The STM8S003F3P6TR with Relay Breakout Board (5V) is a ready-to-use control module designed for microcontroller-based switching and automation applications. Built around the STM8S003F3P6TR 8-bit microcontroller, this board integrates an onboard relay, enabling reliable control of AC or DC loads in embedded systems, DIY electronics, automation projects, and educational applications. Operating on a 5V DC power supply, the breakout board allows direct relay control through the STM8 microcontroller GPIO pins. Its compact design and accessible pin layout make it suitable for rapid prototyping, smart switching solutions, and learning microcontroller-based relay interfacing.

Features:

1. Onboard STM8S003F3P6TR 8-bit microcontroller
2. Integrated relay for load switching
3. 5V DC operating voltage
4. Suitable for AC and DC load control (relay rating dependent)
5. Compact breakout board design
6. GPIO-accessible pins for easy interfacing
7. Supports firmware development using STM8 programming tools
8. Ideal for automation, control systems, and DIY electronics

Specifications:

• Module Type: Microcontroller Relay Breakout Board
• Microcontroller: STM8S003F3P6TR
• Architecture: 8-bit STM8
• Operating Voltage: 5V DC
• Relay Type: Electromechanical Relay (onboard)
• Relay Control: STM8 GPIO
• Load Type: AC / DC
• PCB Material: FR4
• Operating Temperature: –10°C to +60°C
• Relay AC Load: 10A @ 125V AC to 10A @ 250V AC

• Relay DC Load: 10A @ 28V DC to 7A @ 120V DC

Package Includes:

1 × STM8S003F3P6TR with Relay Breakout Board (5V)
