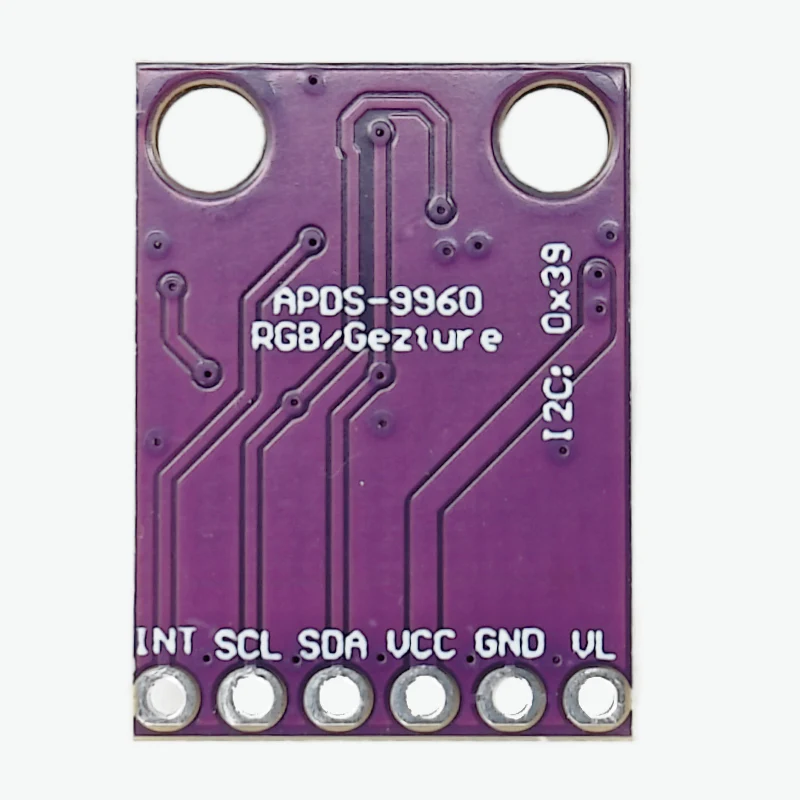

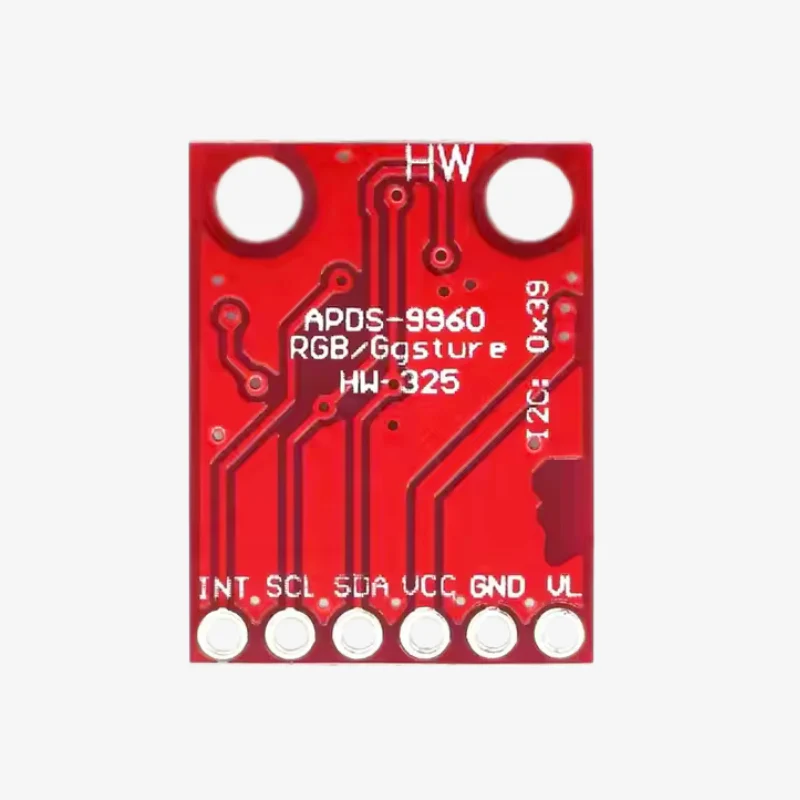

APDS9960 RGB and Gesture Detection Sensor Module

The APDS9960 RGB and Gesture Detection Sensor Module is a versatile and powerful sensor that integrates gesture recognition, ambient light sensing, RGB color detection, and proximity sensing into a single compact module. With its high-performance design, this sensor is ideal for creating interactive applications such as touchless interfaces, smart lighting systems, and robotics.

Features

• Gesture Recognition: Detects directional gestures (up, down, left, right) and proximity-based gestures for touchless control.
• RGB Color Detection: Accurately detects red, green, and blue light intensity, suitable for color-sensing applications.
• Ambient Light Sensing: Measures ambient light intensity, enabling automatic brightness adjustment.
• Proximity Detection: Detects objects or obstacles within a range of up to 10 cm.
• I2C Communication: Simple integration with microcontrollers using the I2C protocol.
• Compact and Lightweight: Perfect for space-constrained and portable designs.
• Low Power Consumption: Optimized for energy-efficient applications.

Specifications

• Operating Voltage: 3.3V to 5V DC
• Communication Interface: I2C (up to 400 kHz)
• Proximity Detection Range: Up to 10 cm
• RGB Resolution: 16-bit precision for red, green, and blue light
• Ambient Light Range: 0 to 1024 lux
• Gesture Recognition: Detects up, down, left, right swipes, and other movements

Package Includes

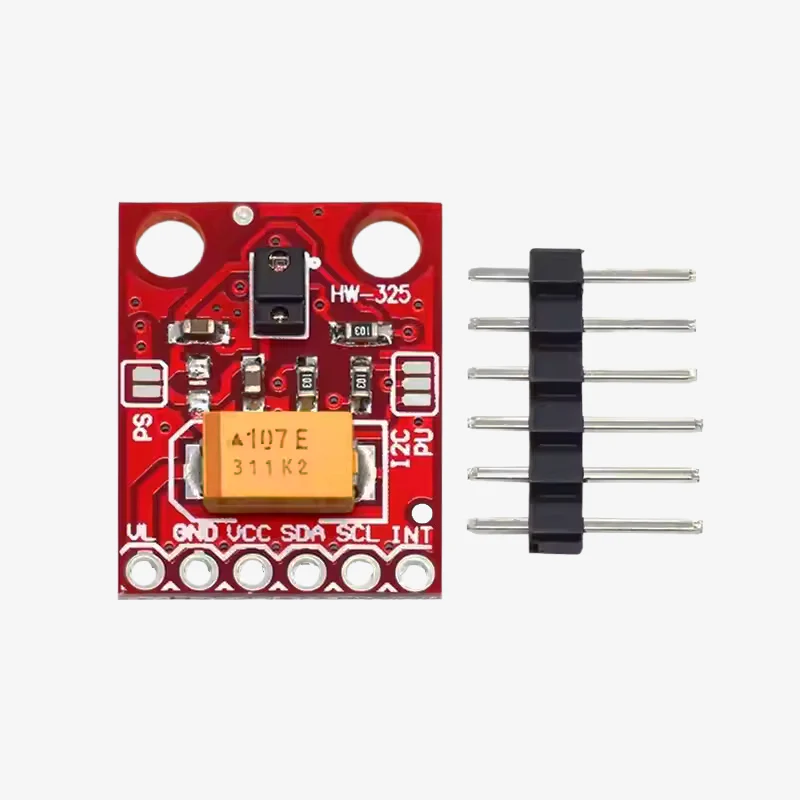

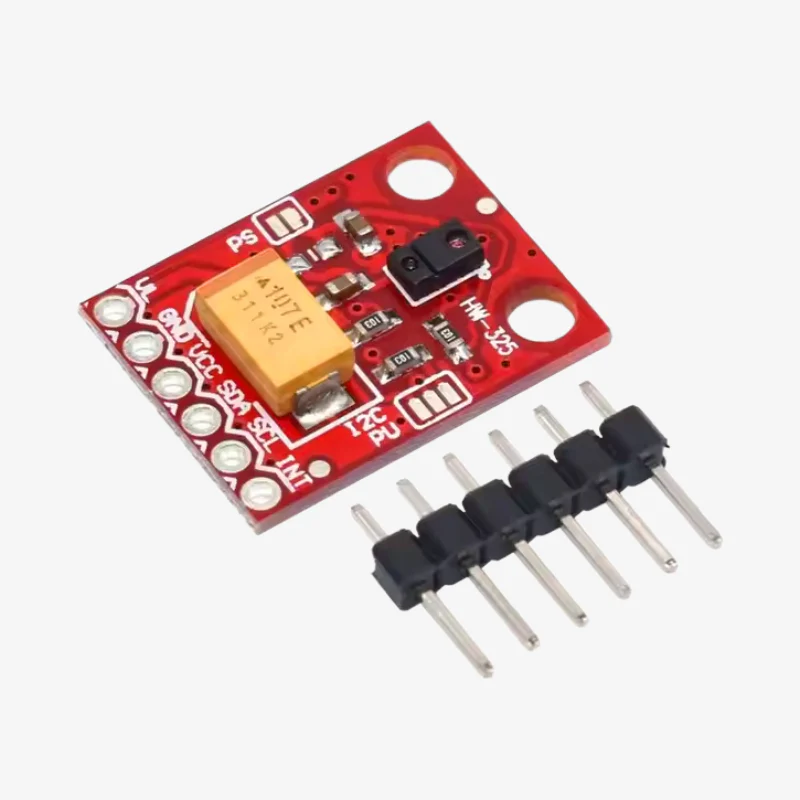

1 x APDS9960 RGB and Gesture Detection Sensor Module
