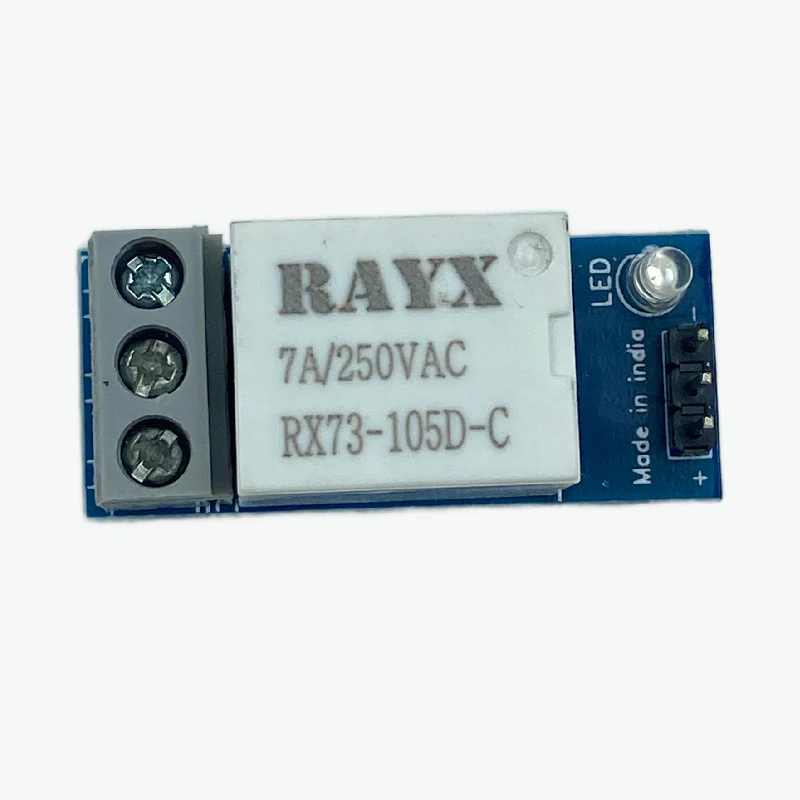

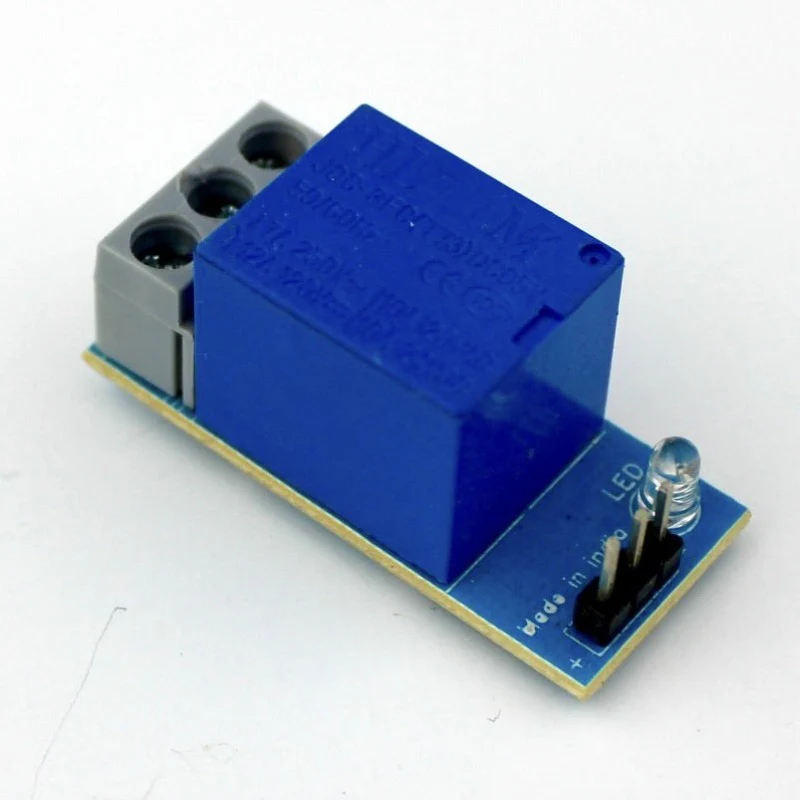

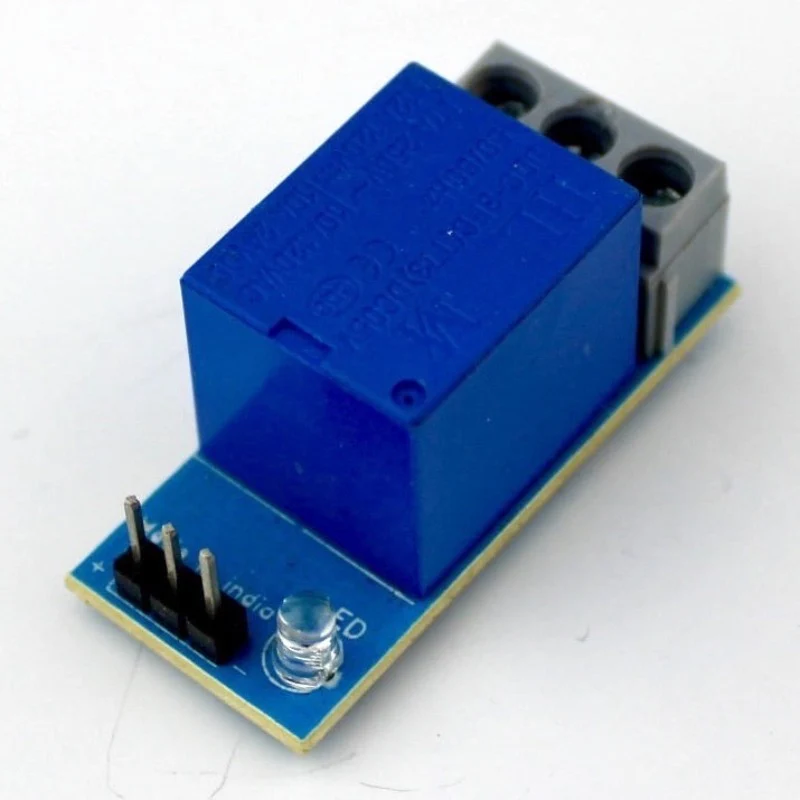

Single Channel 5V Relay Module - Made in India

Relays are most commonly used switching devices used in electronics. It can be used to switch high current loads easily unlike transistors which are limited by the maximum current that can flow through them and also can’t switch AC loads. This 5V 1A Relay Module can switch both AC and DC loads. It is an Electromagnetic switch, when the coil inside is energized with a small current, it can switch ON or OFF the high current circuit. It has PCB screw terminals to directly connect. They can be used in Home automation to switch ON or OFF the appliances, in Electronic circuits to perform switching operations, in safety circuits to disconnect or connect the heavy loads in case of any dangerous situation, in Automobile applications like turning on windscreen wipers, power windows fuel pump, cooling fan etc.



5V Relay Module Input and output connection:

1. 3 input male header pin
2. Pin configuration is +,in,-
3. Output or switching pins are NO, CM, NC.
4. Input voltage is 5V
5. Operating current 50mA
6. Output capacity is 250v,7A ,120v 12A or 24VDC,10A
7. Provided Input signal should be negative.



Package Contents

1 × Single Channel 5V Relay Module - Made in India
