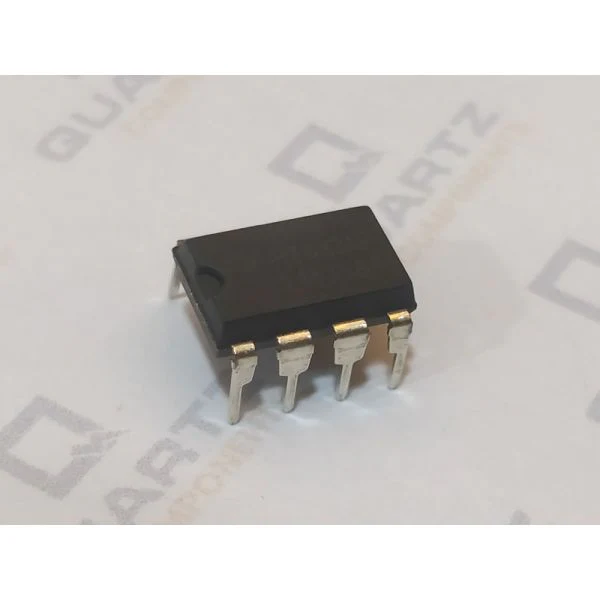

LM358 Dual Op Amp IC

The LM358 is a dual Operational Amplifier IC. It consists of two independent, high gain and internally frequency compensated operational amplifiers. It can run on a single power supply as well as split power supplies. The LM358 series is equivalent to one−half of an LM324. They can operate at supply voltages as low as 3.0 V or as high as 32 V. Current consumption is about 700uA. Applications include transducer amplifier, DC gain blocks and all the conventional OP amp circuits which now can be easily implemented in single power supply systems.



Product Description of LM358 Dual Op Amp IC



                             PIN DESCRIPTION



Features of LM358-Dual Op Amp IC

• Single Supply Operation: 3.0 V to 32 V
• Single and Split Supply Operation
• Low power drain; suitable for battery usage
• Internally Compensated
• Common Mode Range Extends to Negative Supply
• Large DC voltage gain
• Operating Ambient Temperature Range: 0 to 70 °C



Package Contents

1× LM358 Dual Op Amp IC
