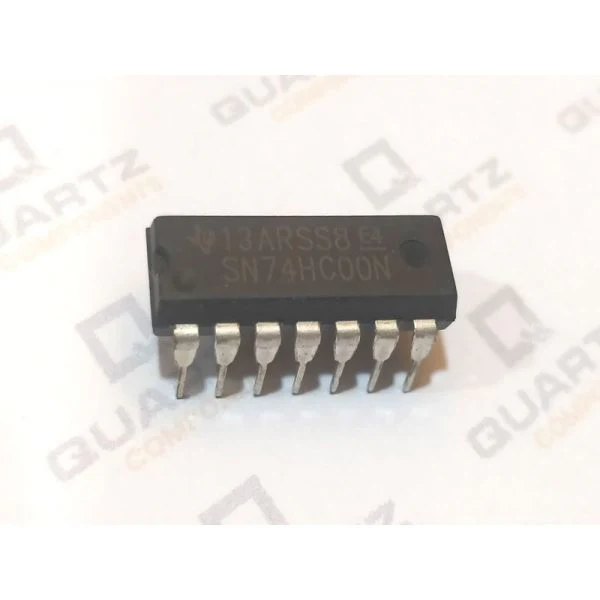

74HC00 Quad 2-input NAND Gate IC

The 74HC00 is an IC with four NAND gates. Each gate has its own two inputs, so the IC is normally referred to as a Quad 2-input NAND gate IC. Though all the gates are powered from a common rail, they operate independently performing a NAND (AND NOT) Boolean function. It is commonly used in SR latches, alarm and temper detect circuits.



Product Description of the 74HC00 Quad 2-input NAND Gate IC



PIN DESCRIPTION

A and B denote Inputs to the NAND gates and the Q denotes outputs from the NAND gates.



Features of 74HC00 Quad 2-input NAND Gate IC

• Implementation of NAND Function
• Buffered inputs and Outputs
• DC supply Voltage range : 2V to 6V
• Operating Temperature : -40 to 125 °C
• Packaging : plastic small outline package; 14 leads; body width 3.9 mm



Package Contents

1× 74HC00 Quad 2-input NAND Gate IC
