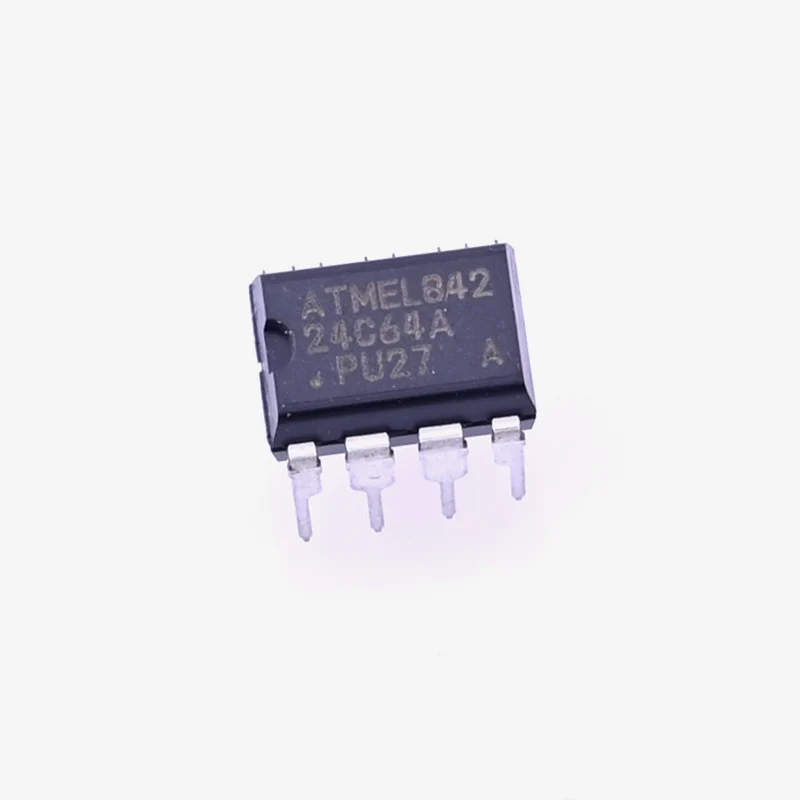

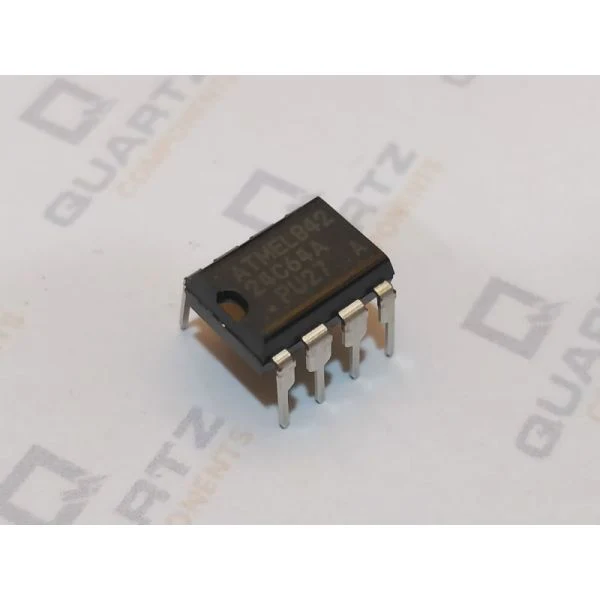

24C64 EEPROM IC

The 24C64 IC is a 64 Kbit serial electrically erasable PROM (EEPROM) organized as eight blocks of 1K, each having 8 bits (8K x 8 bits).  It also offers page-write capabilities of up to 32 bytes of data with a data retention of more than 40 years. This I2C complaint IC permits a maximum of 8 devices to share a common 2 wire bus. It operates on voltage range between 2.5V to 5.5V at clock frequency of up to 400 KHz. It is highly optimized for low power, low voltage applications such as data acquisition or personal communication. The 24C64 EPROM IC is an 8 pin IC that can be accessorized with 8 Pin DIP IC Base/Socket.

PIN DESCRIPTION OF 24C64 EEPROM IC



                                    Signal Names



Features of 24C64 EEPROM IC

• Memory array: 64 Kbit (8 Kbyte) of EEPROM, Page size: 32 byte
• Compatible with all I2C bus modes: 1 MHz, 400 kHz ,100 kHz
• Bidirectional Data Transfer Protocol
• Single supply voltage: 2.5 V to 5.5 V over –40 °C / +85 °C ; 1.6 V to 5.5 V over 0 °C / +85 °C
• Random and Sequential Read modes
• Write protect of the whole memory array
• Write: Byte Write within 5ms and Page Write within 5ms
• More than 40 years of data retention
• Highly reliable



Package Contents

1× 24C64 EEPROM IC
