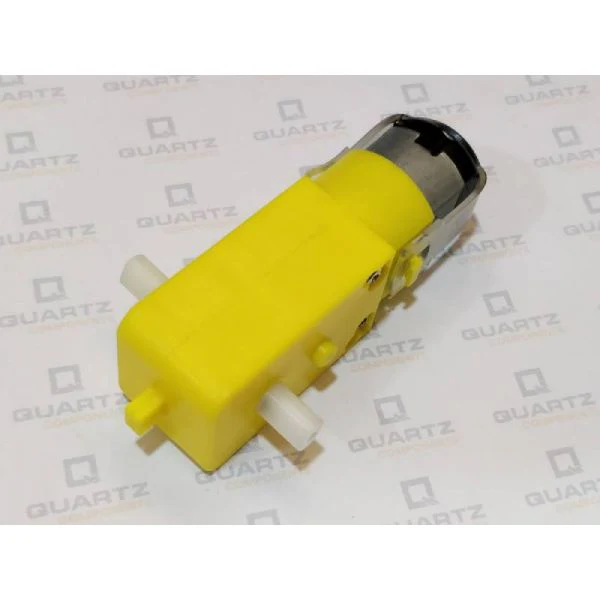

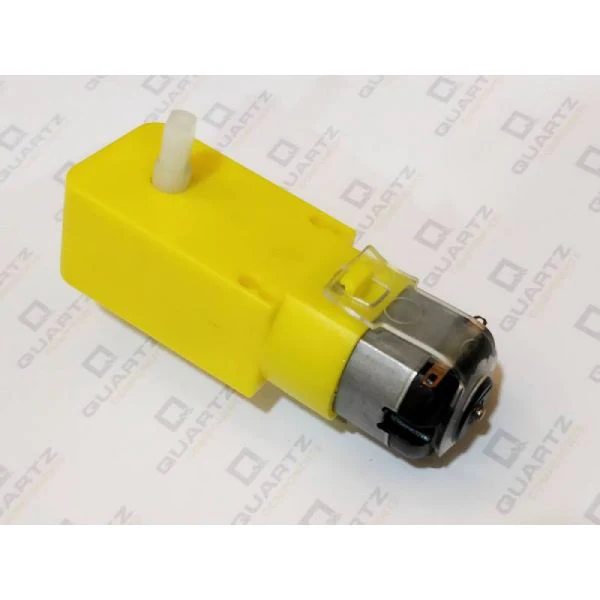

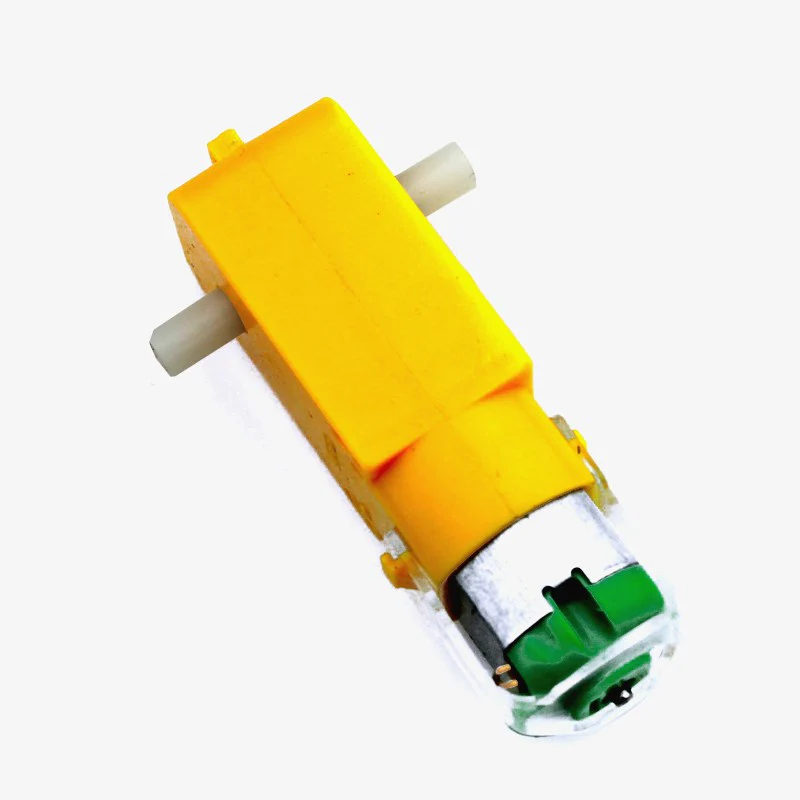

Dual Shaft DC Geared Motor 100 RPM (BO Motor)

Dual shaft geared motors are useful in robotics applications. Shaft on both sides allows the user to use a Wheel and an Encoder simultaneously. Not only this, the user gets enough headroom for the orientation of the motor and can be used in any orientation as per the application is required.

It is a plastic based geared Dual shaft DC motor operating between a voltage range of 3V to 9V and has a torque of 0.8 Kg/cm with an RPM of 100 which is pretty decent for most of the applications. It is recommended to use this motor with more than 5V to have optimum torque in working condition.

For precise speed and direction control, pair this motor with compatible drivers from our Motor Drivers Collection, including L298N, L293D, BTS7960, and other high-performance modules.

Dual Shaft DC Geared Motor (100RPM) Features and Specification:

Features :-

1. Low cost
2. Ease of usage in multiple applications.
3. Lightweight so reduced level of inertia.
4. Absorbs shock and vibration.
5. No lubricant required. Maintenance free.
6. Low coefficient of friction.
7. Corrosion-resistance;
8. Silent operation.
9. Tight tolerances ensure no drifting in different scenarios.
10. Plastic based housing that gives a premium look.



Specification :-

Operating Voltage (VDC)      :   3 ~ 12V

Shaft Length (mm)                :    8.5

Shaft Diameter (mm)             :   5.5

No Load Current (mA)          :  40-180mA.

Rated Speed After Reduction (RPM) :   100

Rated Torque (Kg-Cm)         :    0.35

Weight (gm)                          :  30

Dimensions in mm (LxWxH)   : 70x35x22

Gearbox Shape                       :  Straight

Dual Shaft DC Geared Motor (300RPM) Applications:

• Robotics
• Automation
• In various Vehicle
• Toys
• Different gear movement related operations

Package Contains

1x 100 RPM Dual Shaft DC Geared Motor
