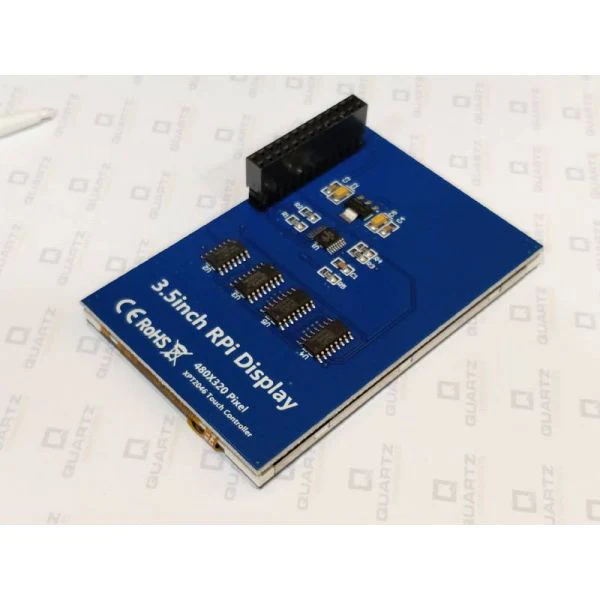

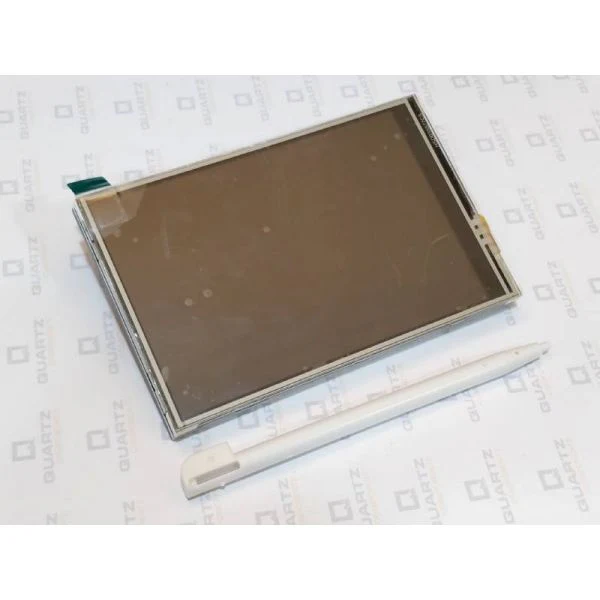

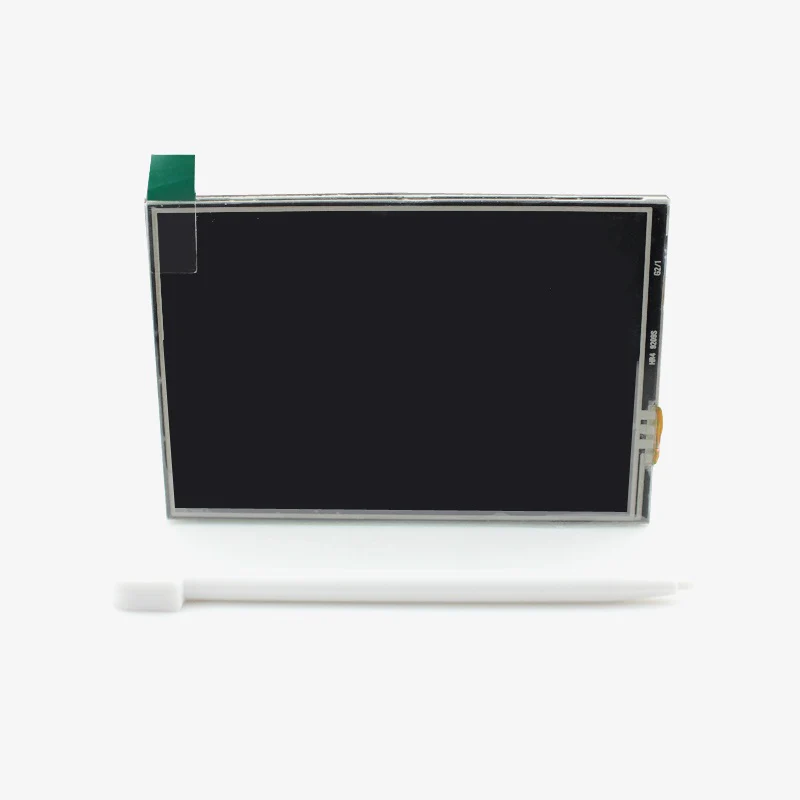

3.5 Inch TFT Touchscreen Display for Raspberry Pi

This 3.5" TFT display has 480x320 pixels with a 16-bit resolution and resistive touch option. It can fit directly on top of the Raspberry Pi board and gets powered from the Vcc pin, the display communicates through SPI protocol with the Pi.

Additionally, you can also use the HDMI port on pi to connect it to another display as well. It is designed for Raspberry Pi zero/Pi 2 /Pi 3 Model B / B+ and can also be used on other hardware platforms which have SPI interface. The highlight of this display module, it supports plug and play without reboot the Pi, and SPI speed runs as fast as 32MHz to support games and videos.



Pin Configuration

Pin No.	Name	Description
1, 17	3.3V	3.3V power input
2, 4	5V	5V power input
3, 5, 7, 8, 10, 12, 13, 15, 16	NC	Not Connected
6, 9, 14, 20, 25	GND	Ground Pins
11	TP_IRQ	Touch Panel interrupt, low level while the Touch Panel detects touching
18	LCD_RS	Instruction/Data Register selection
19	TP_SI	SPI data input of Touch Panel
21	TP_SO	SPI data output of Touch Panel
22	RST	Reset
23	TP_SCK	SPI clock of Touch Panel
24	LCD_CS	LCD chip selection, low active
26	TP_CS	Touch Panel chip selection, low active



Features and Specifications:

• 320×480 resolution
• Operating Voltage: 5V
• Resistive touch control
• Touch Screen Controller: XPT2046
• Driver IC: ILI9486
• Supports any revision of Raspberry Pi (directly-pluggable)
• Compatible with Raspberry Pi A, B, A+, B+, 2B, 3B, 3B+,4B versions
• Drivers provided (works with your own Raspbian/Ubuntu directly)
• Size perfectly fits the Pi
• High quality immersion gold surface plating
• Supports Raspbian system, Ubuntu system ,kali Linux system
