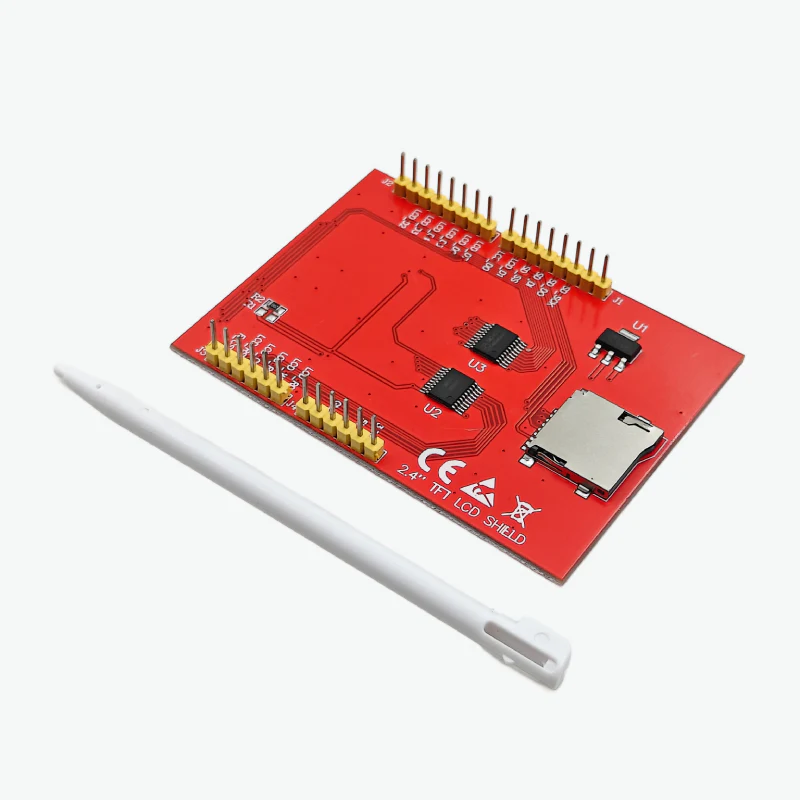

2.4 Inch TFT Touchscreen LCD Display for Arduino Uno

This 2.4" TFT LCD display module will add up as an awesome display for your Arduino Projects. It can display 240x320 coloured pixels and also has touch screen functionality. The LCD fits directly on top of Arduino UNO as a shield, it is powered by the 3.3V pin on Arduino and communicates through SPI protocol.

It is easy to display contents, graphics or even bitmap images on this LCD using the pre-built library for Arduino. It has the 74LVX245 as the display driver IC, hence can be used with other microcontrollers as well.

Note: Product may be differ from the picture shown here.

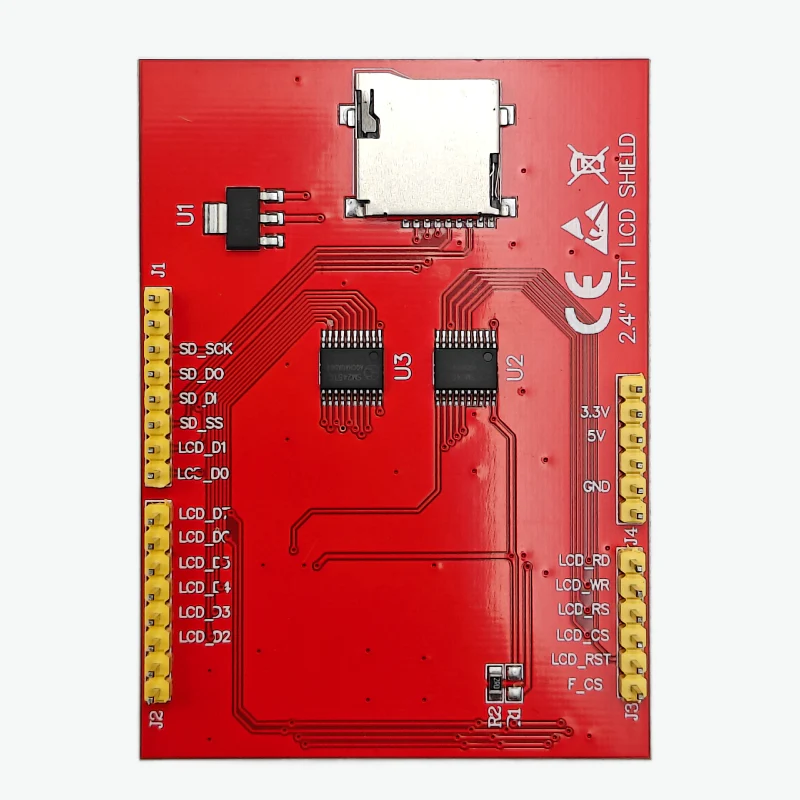

Pin Configuration



Features and Specifications:

• 4 inch LCD TFT display
• Bright, 4 white-LED backlights, on by default but you can connect the transistor to a digital pin for backlight control
• Colorful, 18-bit 262,000 different shades
• 4-wire resistive touchscreen
• 240 x 320 resolution
• Spfd5408 controller with built-in video RAM buffer
• 8-bit digital interface, plus 4 control lines
• Uses digital pins 5-13 and analog 0-3. That means you can use digital pins 2, 3 and analog 4 and 5. Pin 12 is available if not using the micro SD
• 5V compatible, use with 3.3V or 5V logic
• Size: 71 x 52 x 7mm



Additional Resources:

TFT Display Datasheet

Arduino 2.4″ Touch Screen LCD Shield Tutorial



Package Includes:

1 x LCD Touchscreen 2.4 inch
