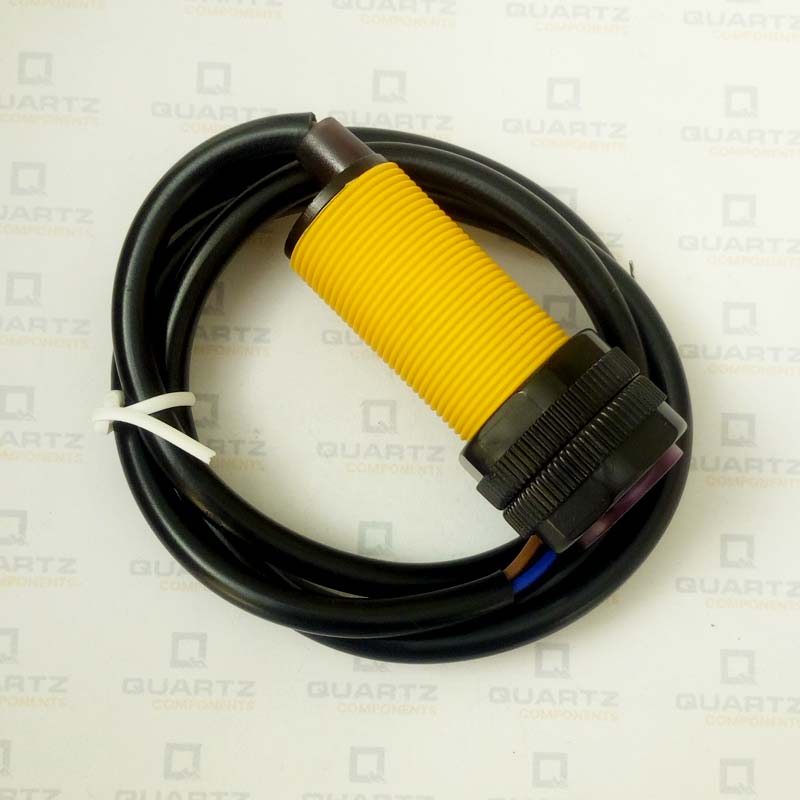

E18-D80NK IR Proximity Sensor Switch

With a long detection range of 3-80cm, The E18-D80NK Adjustable Infrared Sensor Switch is a set of transmitter and receiver in a single photoelectric switch-based sensor. The detection distance can be adjusted according to the demand from the 3-80cm as per the application demand. The switching signal output changes as per the obstacles distance. It remains in HIGH state when no obstacles are available and remains in LOW state when there are obstacles. The sensor uses bright light behind the probe to detect the scope of 3cm – 80cm.

It is small, user friendly, cost effective, easy to handle and can be widely used in a robot to avoid obstacles, interactive media, industrial assembly lines, and many other occasions.

E18-D80NK pinout:

Features and Specification: -

• Light source  : Infrared
• Sensing Range: 3cm to 80cm
• Input Voltage (V): 5
• Current Consumptions: 300mA
• Cable length: 1 m.
• Adjustable detection distance.
• Digital output.
• Diffuse reflective type.

E18-D80NK Applications:

• Obstacle Detector
• IR Emitter for Long distance measurement
• Robotics
• Industrial Automations

E18-D80NK Dimension:

Package Contains

1x E18-D80NK IR Sensor Switch
