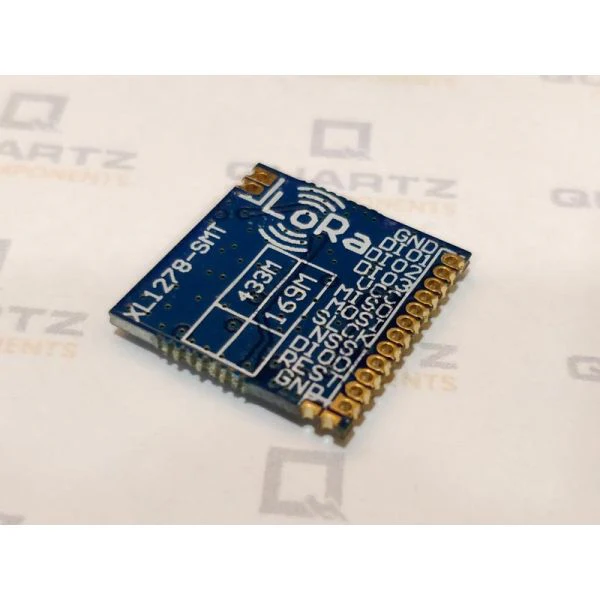

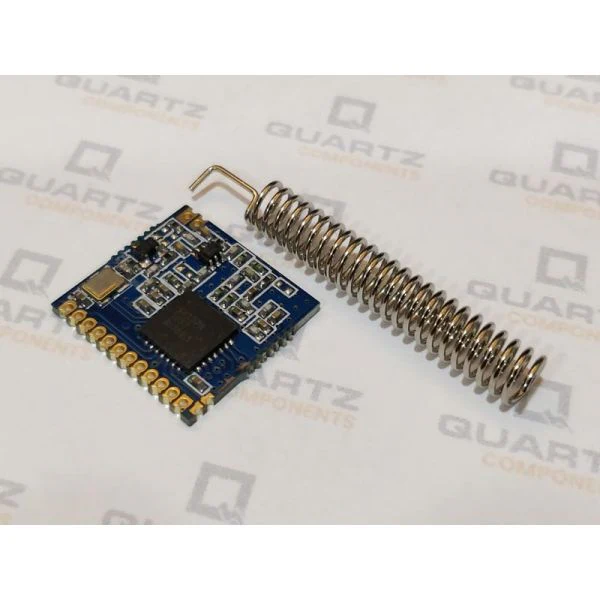

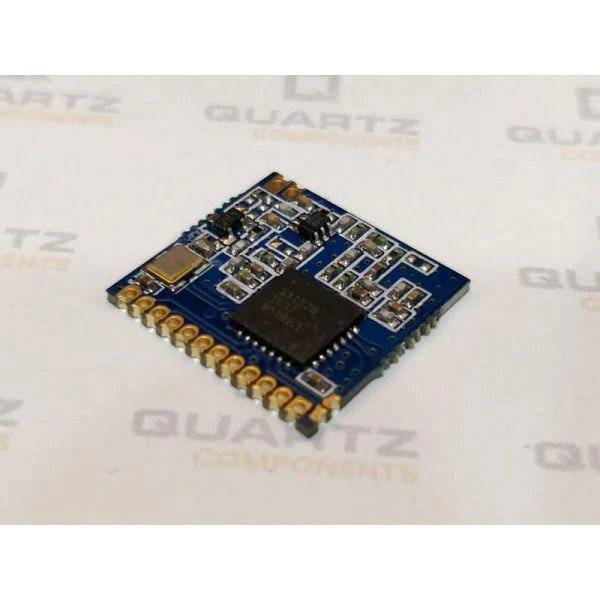

433MHZ SX1278 LoRa Long Range RF Wireless Module

The SX1278 LoRa modules are used in Long Range communications. It is a type of low cost RF front-end transceiver module based on SX1278 from Semtech Corporation. The high sensitivity (-136dBm) in LoRa modulation and 20dBm high power output make the module suitable for low range and low data rate applications.

SX1278 LoRa Module Specifications:

• Frequency Range: 433MHz
• Supply voltage: 1.8~3.6V
• Standby current: ≤ 1uA
• Modulation: FSK/GFSK/MSK/LoRa
• Output Power: +20dBm
• Sensitivity: -136dBm
• Data Rate: <300 kbps
• SPI Data Interface
• Packet engine up to 256 bytes with CRC
• Working Temperature: -40°C ~+80°C
• Build-in temperature sensor

Applications:

• Applications require long range communication
• IoT Applications
• Home and Building Automation
• Industrial monitoring and control applications


Package Includes:

1 x 433MHZ SX1278 LoRa Long Range RF Wireless Module
