$0.49The Story

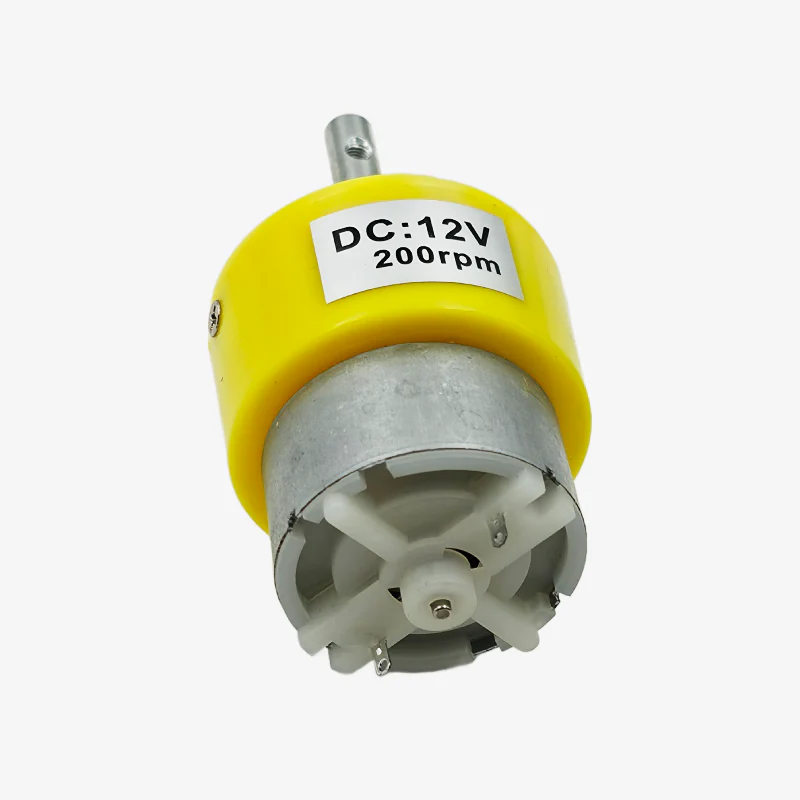

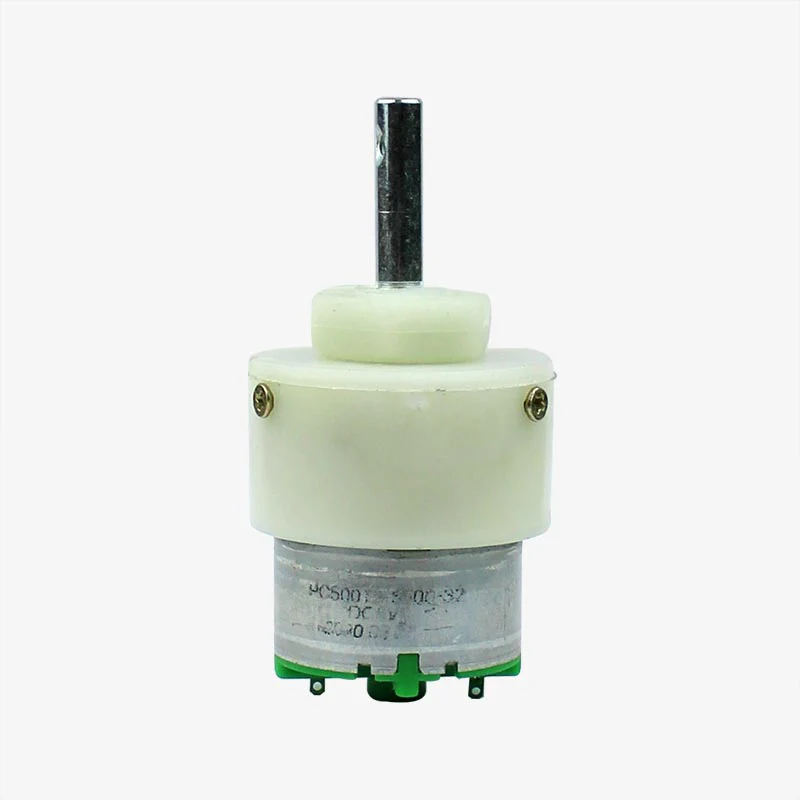

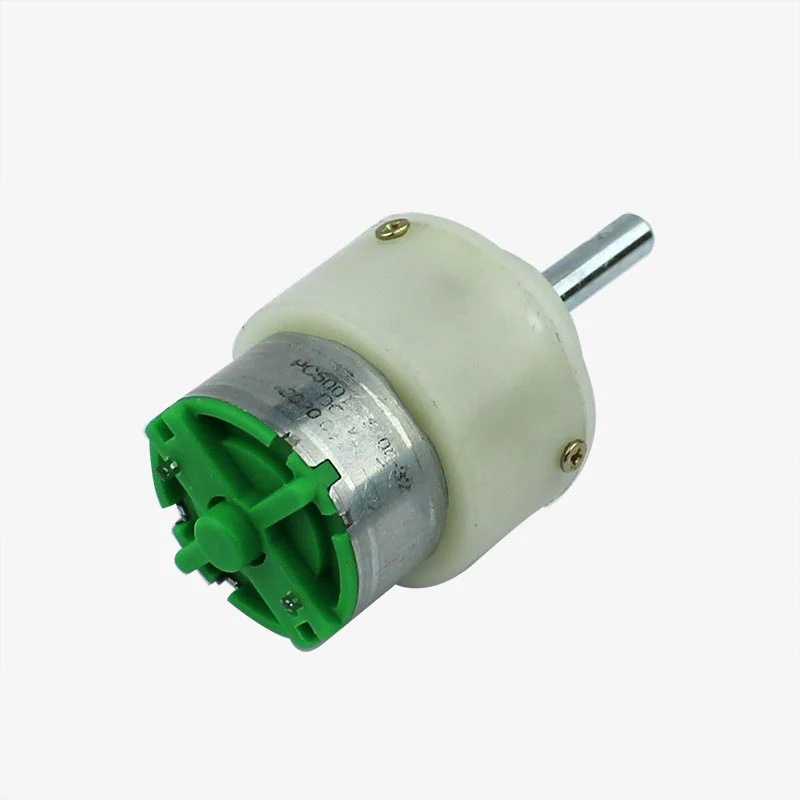

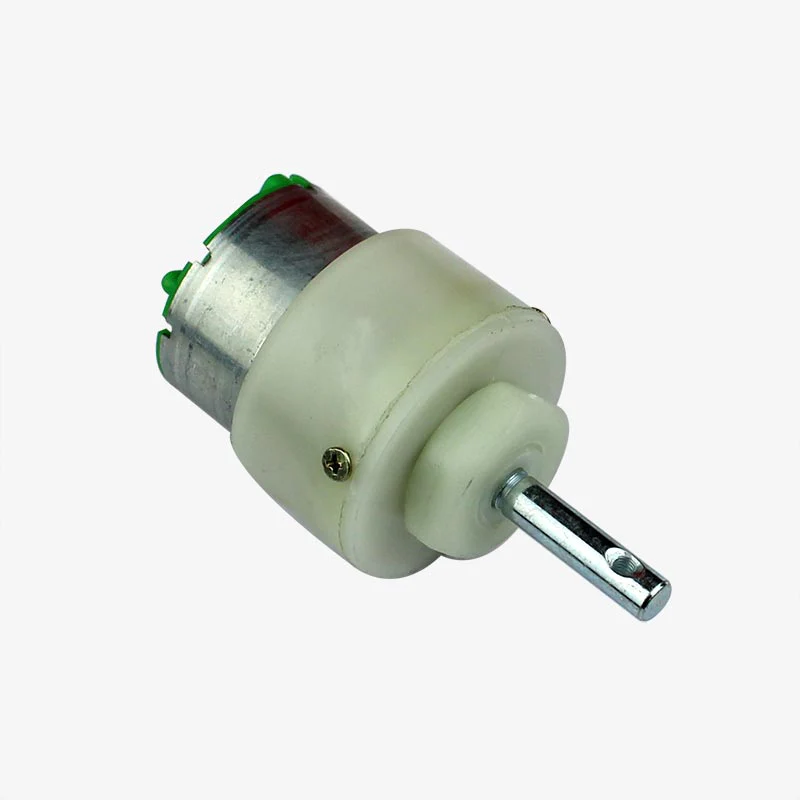

Selecting the right DC gear motor is troublesome for the robotics project. However, This DC Geared motor can be used for heavy-duty applications, robotics, or in any industrial or educational applications. It has a wide range of features for obtaining the optimal performance characteristics. It is very easy to use and does not need expensive motor control circuitry.
The 12V DC Motors are very popularly used in robotics applications. The gearbox of the motor helps in providing greater torque that is required to drive robotic vehicles. Based on the gearbox design the RPM and Torque of the motor will vary. This particular motor is rated for 200 RPM and 1.5kg/cm Torque. The motor also comes with a hex nut to making the mounting process easier.
This DC Motor has 200RPM and the voltage rating of 12Volts that is a useful specification to make this geared motor as a retro fitable in all-terrain robots and a variety of robotic projects. The motors shaft has a 3 mm threaded drill hole in the middle which is very useful for mechanical assembly.
For precise speed and direction control, pair this motor with compatible drivers from our Motor Drivers Collection, including L298N, L293D, BTS7960, and other high-performance modules.
Note: Product color may be differ from the picture shown here.
Geared motor features and specification:
Specification:
- Gear Type: Plastic
- RPM: 200
- Working Voltage (VDC): 4-12V (12V recommended and maximum)
- Torque (kg - cm): 5
- Load Current Max: 300mA
- No-Load Current (mA): 60mA
- Rated Torque: 1.5kg/cm
- Stall Torque: 5.4g-cm
Geared Motor Applications:
- Robotics
- Controlling Wheels
- Industrial application
- Educational projects
- Different motor related applications
Note : Color may be changed.
Also do checkout:
12V 10RPM Geared DC Motor
12V 30RPM Geared DC Motor
12V 100RPM Geared DC Motor
12V 300RPM Geared DC Motor
Example on How to use Geared Motor:
Geared Motor Basic
Additional Resources:
More about Gear Motors
Package Contains
1x Geared Motor - 200 RPM - 12V
